Master Control Panel (Updated two months ago)
You can view this bundle in the SFSU Over the Years collection area.

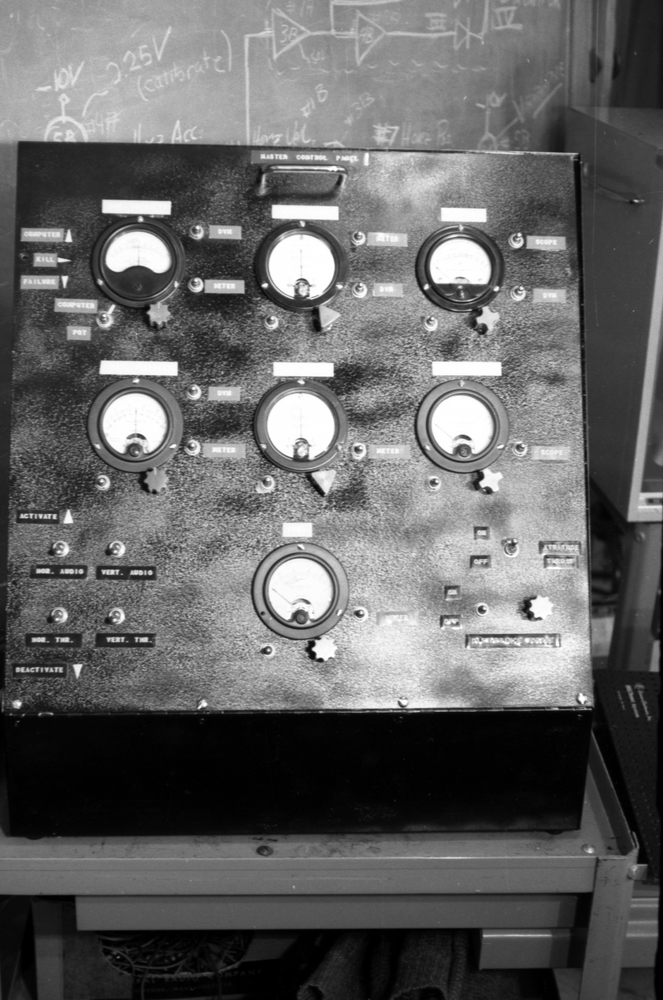

Master Control Panel—the brain and dashboard of the entire analog system. This panel was designed to control, monitor, and sync various analog systems—likely in support of: A flight simulator, A control systems lab Or a broadcast/closed-circuit educational setup. It centralized everything from power activation to signal synchronization, allowing a technician or instructor to supervise complex experiments or training modules from one place.
Tags: historic technology
Added to SFSU Over the Years on July 31, 2026.
