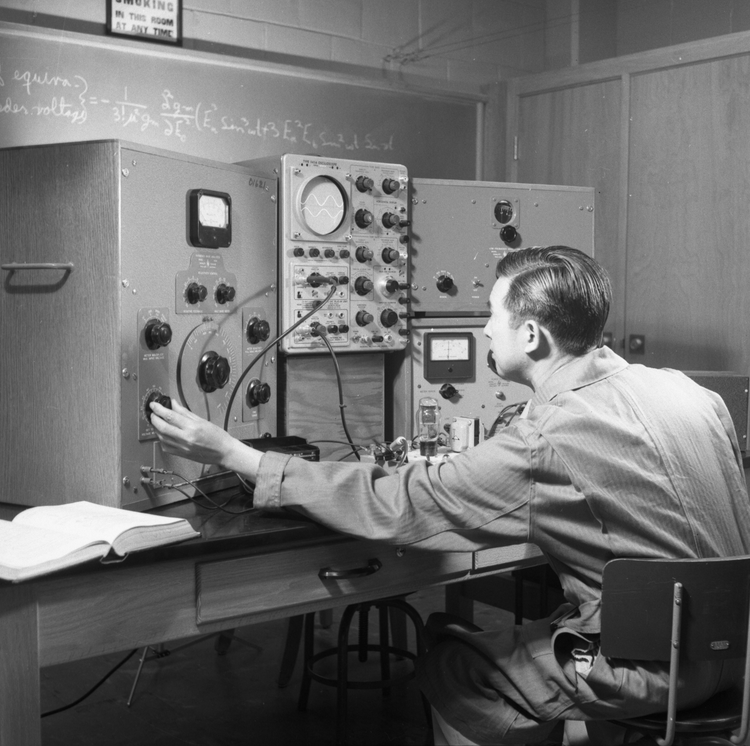

A Man Operating Mid-20th-Century Electronic Testing Equipment

Equipment Identified:

1. Oscilloscope (center-top device with the waveform on the screen):
• Used to visualize electrical signals, especially their voltage over time.
2. Signal Generator or Frequency Generator (left-side device with multiple dials):
• Used to create electronic signals with specific frequencies and amplitudes.
3. Vacuum Tube-based Electronics:
• The large equipment and visible components suggest this is from the era before solid-state devices, meaning the setup relies on vacuum tubes, common in the 1940s–1960s.
4. Analog Multimeter or Power Supply Unit (below oscilloscope):
• Measures voltage, current, or resistance—or supplies controlled power to test circuits.
5. Chalkboard Equations:
• Equations in the background may relate to electromagnetic wave behavior, signal theory, or voltage derivation—hinting this is likely a physics or electrical engineering lab.

Likely Scenario:

This man is conducting an electrical engineering experiment or calibration, possibly analyzing or troubleshooting a circuit using analog test instruments typical of a university or R&D lab in the mid-1900s.
