Students and Faculty Working Through a Real-World Engineering Simulation

The Devices:

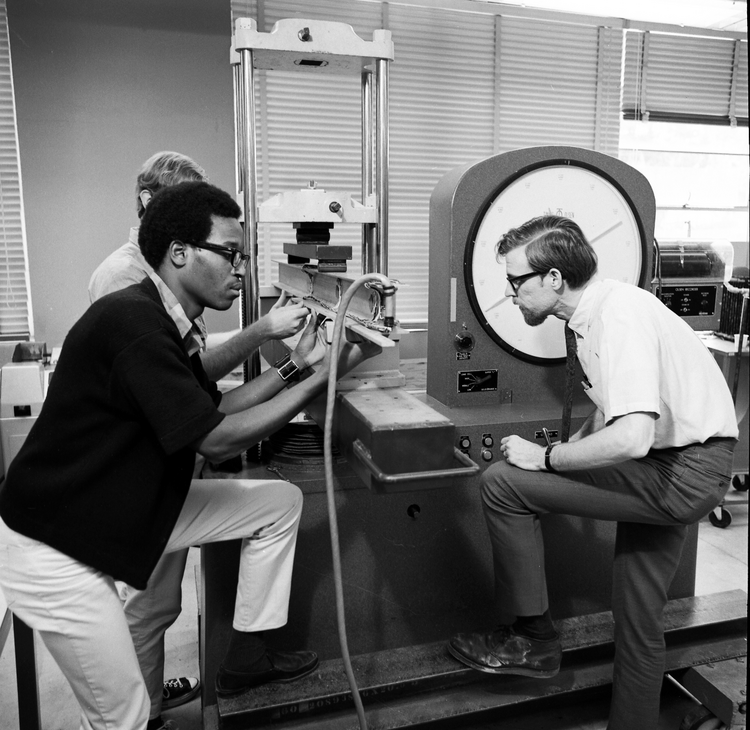

1. Universal Testing Machine (UTM) – On the left

• The tall vertical frame with two vertical columns is a mechanical testing press, likely a Universal Testing Machine.

• These are used to test:

  • Tensile strength

  • Compression

  • Bending (flexural strength) of materials

• The central clamping section is holding a sample beam or structural member, and the men appear to be setting up or measuring a test.

2. Dial Force Gauge or Analog Recorder – On the right

• The large circular dial is a force indicator—likely measuring:

  • Pounds-force (lbf)

  • Kilograms-force (kgf)

  • Or Newtons

• This would track how much force is being applied to the specimen and at what point it yields, bends, or breaks.

• It’s part of the feedback and data recording system of the UTM.

3. Tubing and small components being held

• The hose and instrumentation the two men are examining likely connect to:

  • Strain gauges

  • Displacement transducers

  • Or an air/hydraulic actuator embedded in the specimen

They’re possibly measuring strain deformation, or they might be setting up instrumentation to monitor micro-movements under load.

The People:

 The man on the left is adjusting or securing instrumentation to the test sample.

• The man on the right is closely observing the dial—likely verifying system zeroing, or watching how force behaves as the setup is finalized.

• The third person (slightly obscured) seems to be guiding or holding part of the equipment steady.

This looks like a collaborative lab test, possibly involving:

• Structural engineering principles

• Material science education

• or Aerospace/mechanical component testing

Academic context:

• A high-stakes moment in a destructive or fatigue testing exercise

• Students or faculty working through a real-world engineering simulation
