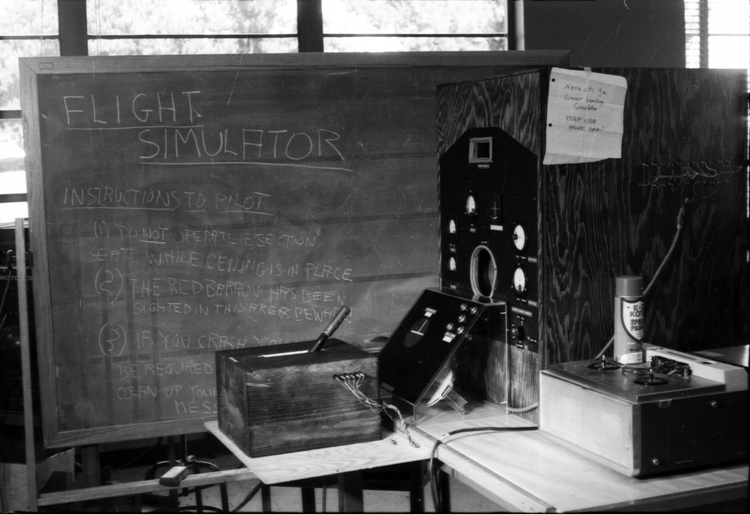

Institutional Analog Flight Simulator System

What the components do:

1. Main Control Panel (with dials and meters):

• Fuel, thrust, altitude, and velocity dials: These are simulated instrument readings—not live measurements but controlled either by internal logic or knobs behind the panel.

• "Digital Display" window: Possibly shows numerical values, likely from a 7-segment display or rotating drum (though unclear if functional).

• CRT port ("Position"): Could have displayed a dot or crosshair representing motion—used in early simulators before graphical screens.

2. Joystick Module ("Thruster Control"):

• The wooden box with a vertical stick is a basic control yoke or thrust lever.

• Likely uses potentiometers inside to translate movement into voltage signals.

• Feeds inputs to the control logic to simulate thrust, pitch, or yaw.

3. Circular Display with Grid ("30 Degrees Max / Red Error"):

• Likely an attitude indicator substitute, showing pitch or roll deviation.

• Could be operated by servo motors or analog meter movement behind the display.

• The light-up segments and labeled error regions suggest feedback for pilot alignment.

4. Box to the Left (inside acrylic housing):

• Appears to be a gyroscopic component or gimbal mechanism—possibly a demonstration of inertial behavior or feedback mechanism.

• Could be used to simulate stabilization or rotational inertia.

5. Reel-to-reel tape player (to the right):

• Likely used to play back control room audio, background engine noise, or scripted simulation instructions.

Signage & Humor:

• “Instructions to Pilot” on the blackboard includes jokes about the Red Baron and ejection seats—indicating this was educational with a lighthearted tone.

• Sign: “Here sits the Lunar Landing Simulator. Keep your hands off!” hints that this was meant to model not just aviation, but potentially Apollo-era spacecraft control, which fits well with the era.

Estimated Time Period:

• Mid-to-late 1960s through early 1970s

 Likely Origin:

• Built by or for a university engineering or psychology lab at San Francisco State as part of a program in:

  • Human factors / cognition

  • Simulator training

  • Systems design or control theory

 Credits:

Some technical descriptions and historical interpretations were developed with the assistance of ChatGPT, an AI language model by OpenAI.
