Institutional Analog Flight Simulator

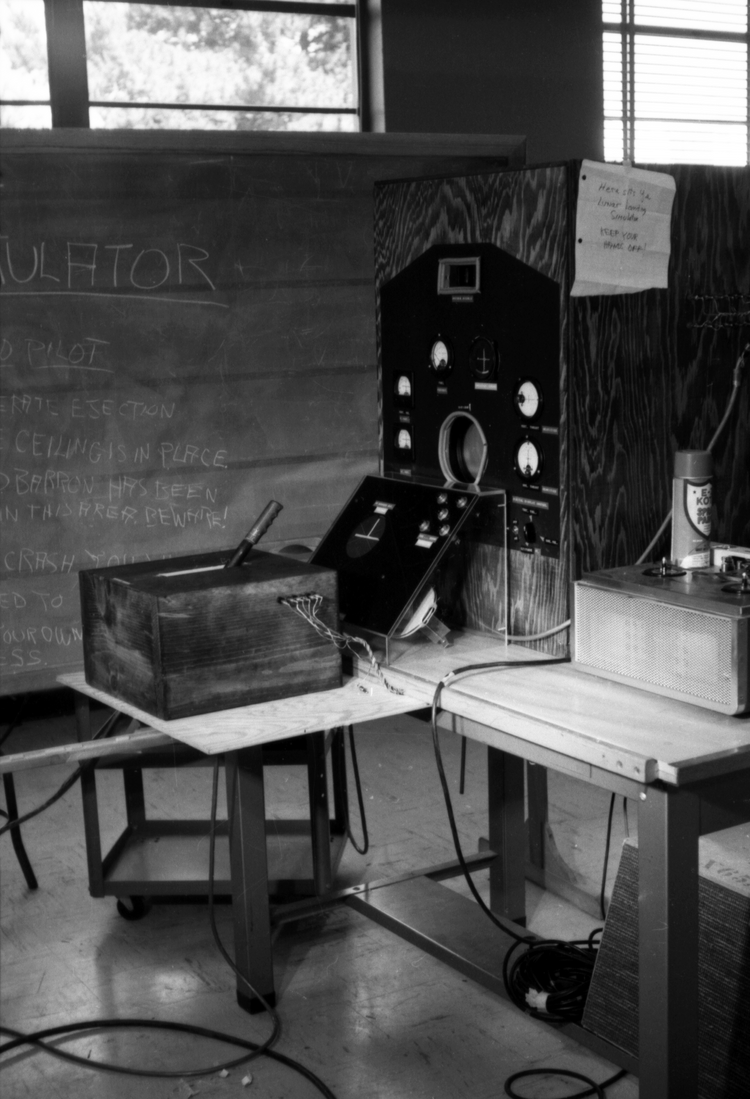

 What the components do:

1. Main Control Panel (with dials and meters):

• Fuel, thrust, altitude, and velocity dials: These are simulated instrument readings—not live measurements but controlled either by internal logic or knobs behind the panel.

• "Digital Display" window: Possibly shows numerical values, likely from a 7-segment display or rotating drum (though unclear if functional).

• CRT port ("Position"): Could have displayed a dot or crosshair representing motion—used in early simulators before graphical screens.

2. Joystick Module ("Thruster Control"):

• The wooden box with a vertical stick is a basic control yoke or thrust lever.

• Likely uses potentiometers inside to translate movement into voltage signals.

• Feeds inputs to the control logic to simulate thrust, pitch, or yaw.

3. Circular Display with Grid ("30 Degrees Max / Red Error"):

• Likely an attitude indicator substitute, showing pitch or roll deviation.

• Could be operated by servo motors or analog meter movement behind the display.

• The light-up segments and labeled error regions suggest feedback for pilot alignment.
