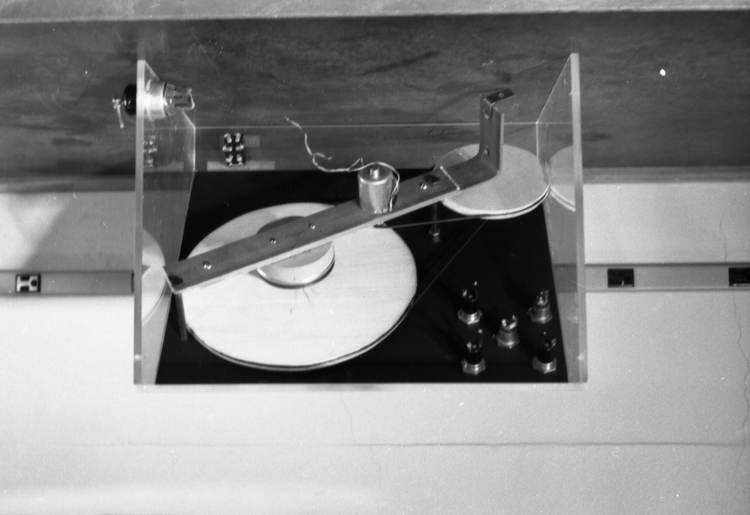

Mechanical Roll-Based Feedback or Recording Mechanism of a Flight Simulator Setup

Bottom-Right Components:

• The group of knobs or terminals at the lower right corner are probably:

  • Adjustment dials for sensitivity or calibration

  • Connection terminals for input/output voltage

Possible Functions:

1. Data Recorder (Analog Plotter)

• Used to log flight data or user input over time.

• May have drawn or marked patterns on the paper as the simulator was used—tracking motion like:

  • Control stick position

  • Altitude changes

  • Thrust or error margin

• The stylus could have been moved electrically to plot readings based on variable input.

2. Input Variable Feeder

• It’s also possible this was part of a programmed input loop, feeding a tape or strip that altered a flight condition (e.g., variable wind, error timing).

• Something like a primitive mechanical “script”—a timeline of values the simulator responded to.
