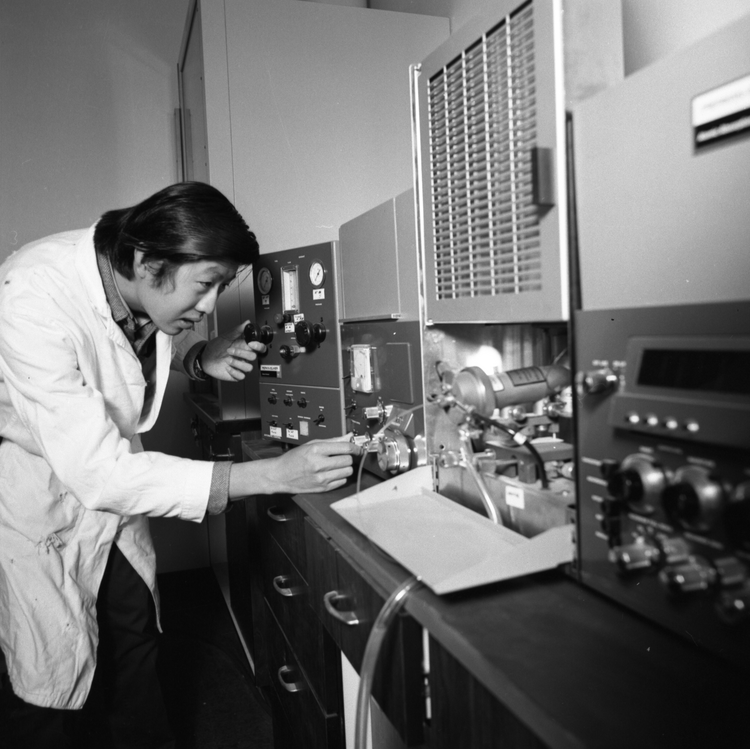

Student Operating Analytical Instrumentation in Chemistry Laboratory, San Francisco State College, November 1971

Equipment Breakdown (left to right):

1. Control Console / Flow Regulation Panel
• Features: Pressure gauges, rotary valves, flow meters, toggle switches.
• Purpose: This panel is likely used to control and monitor the carrier gas (e.g. helium or nitrogen), essential for transporting samples through the system. This could be a gas chromatograph or part of a vacuum system.
• The technician is adjusting a valve, likely preparing the sample injection or tuning the carrier gas flow rate.

       2. Heated Injector Port / Interface

• Location: Center-right of the technician.
• Purpose: Where the sample is injected into the system. It’s likely heated to vaporize the sample for gas-phase analysis.

       3. Main Analytical Instrument (Gas Chromatograph or Mass Spectrometer)

• Right-side unit with a horizontal cylindrical component and vented section.
• Purpose:
• If GC: Separates sample components over time through a capillary column.
• If MS: Ionizes separated molecules and detects them based on mass-to-charge ratio.
• The cylinder could be an electron impact ionizer, and the nearby metal detector housing might house a quadrupole or magnetic sector analyzer.
• The large grill likely covers a cooling fan or vacuum pump.

       4. Data Acquisition Module

• Far-right instrument with knobs and digital display.
• Purpose: Allows the user to set scan parameters, control data capture, or calibrate the instrument.

Credits:

Some technical descriptions and historical interpretations were developed with the assistance of ChatGPT, an AI language model by OpenAI.
