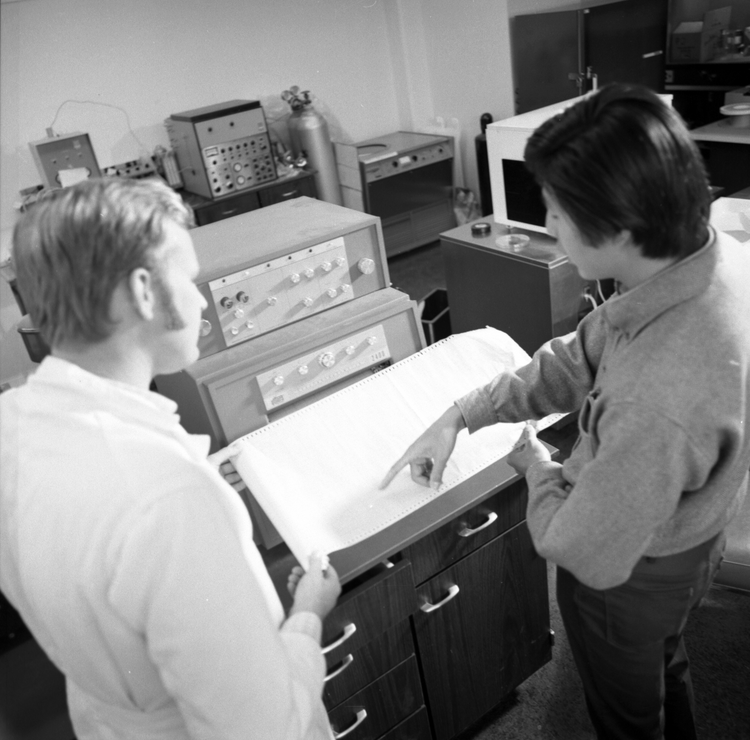

Students Examining Continuous Output from Experiment or Simulation, San Francisco State College, November 1971

Equipment and Their Functions:

1. Data Recorder / Strip Chart Recorder (Foreground, with paper roll)

• Function: Captures and prints continuous analog signals (e.g., temperature, pressure, voltage) as line graphs over time.
• Usage: Common in labs for monitoring long-duration tests like stress analysis or fluid flow.

2. Signal Conditioning Unit (Middle, with dials)

• Function: Amplifies, filters, or converts sensor data before it’s recorded.
• Usage: Ensures the signals being fed to the data recorder are stable and readable.

 3. Analog Computer or Interface Console (Lower front panel)

• Function: Converts real-world measurements into data that can be processed or visualized.
• Usage: Often used to simulate or model system behavior (e.g., dynamic response of structures or fluid systems).

 4. Instrumentation Rack (Background Left, with many knobs and switches)

• Function: Houses various modules like power supplies, amplifiers, waveform generators, or control relays.
• Usage: Controls inputs/outputs and electrical conditions during experiments.

 5. Rotating Drum Recorder or High-Speed Plotter (Far Right, behind drawer cabinet)

• Function: Captures higher-speed data than a strip chart recorder.
• Usage: Useful when quick response measurements are required—like in shock or vibration tests.

 6. Oscilloscope (on Instrumentation Rack)

• Function: Displays voltage signals in real time.
• Usage: For visualizing waveforms, checking signal integrity, or tuning analog equipment.

 Gas Cylinder – Likely Oxygen (or Possibly Nitrogen)

Location: Rear-left side, against the wall.
Possible Identification: It appears to be a compressed gas cylinder, possibly oxygen or nitrogen, based on the regulator and common usage.

 Why it might be there:

• Calibration: Some sensors or instruments (like gas flow or pressure sensors) require oxygen or inert gas (e.g., nitrogen) to calibrate.
• Pneumatics: Could be used to power or actuate certain components of test rigs.
• Controlled Atmosphere: If any of the tests involve sealed systems or chambers, the gas may be introduced to create a specific environment.
